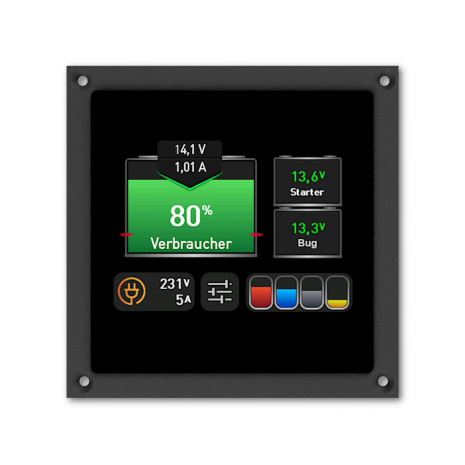

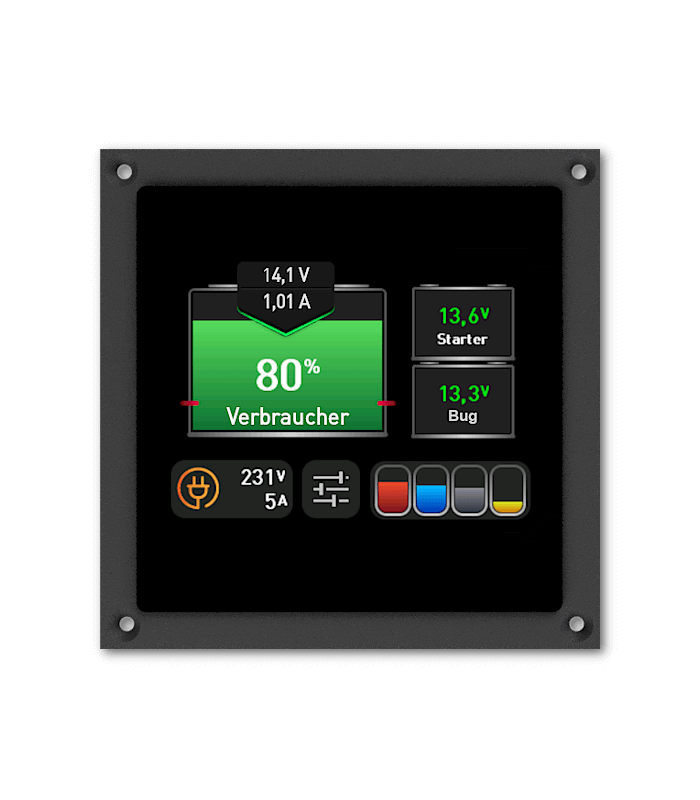

PHILIPPI BATTERY TANK MONITOR BTM2

Artikelnummer: 683.400.0

071004050

256,27 excl.BTW

Artikelnummer: 683.400.0 Categorieën: ,

The tank sensors, the shunt SHE348 (683.409.0) and the OPTIONAL NMEA 2000 connection cable ”504111140” must be ordered separately.

Operating voltage: 8-64 V
Power consumption: max. 70 mA @ 12V, stand-by: 6 mA
Dimensions: L 105 x W 105 x H 35 mm
Mounting cutout: 88 x 88 mm

*Bijhorende shunt: SHE300/artikelnummer: 683.409.0

BTM2_EN

Display: 3,5”
Battery cap. Via SHE300 Shunt.
Voltage measurement starter 1: Via SHE300 Shunt.
Voltage measurement starter 2: At display.

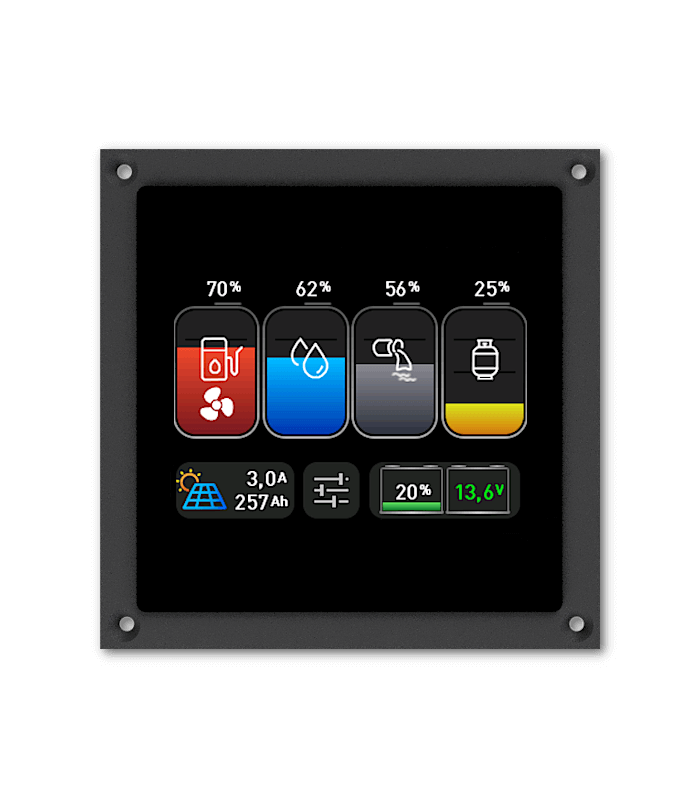

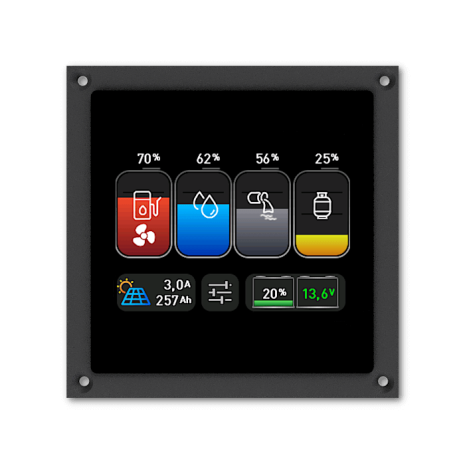

Tank measurement: Up to 4 tanks.
Communication with charger: Yes, via ACE-LIN.
